CFS

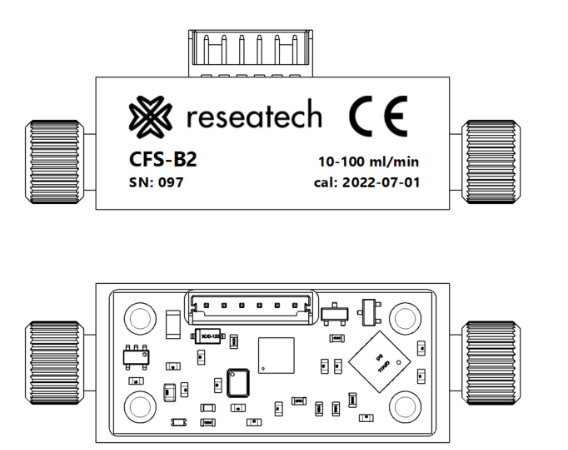

Continuous Flow Sensor

Products

The CFS is a highly dynamic flow sensor for liquids. It is based on the proven differential pressure technology of ReseaTech, but impresses with its compact design and easy integration.

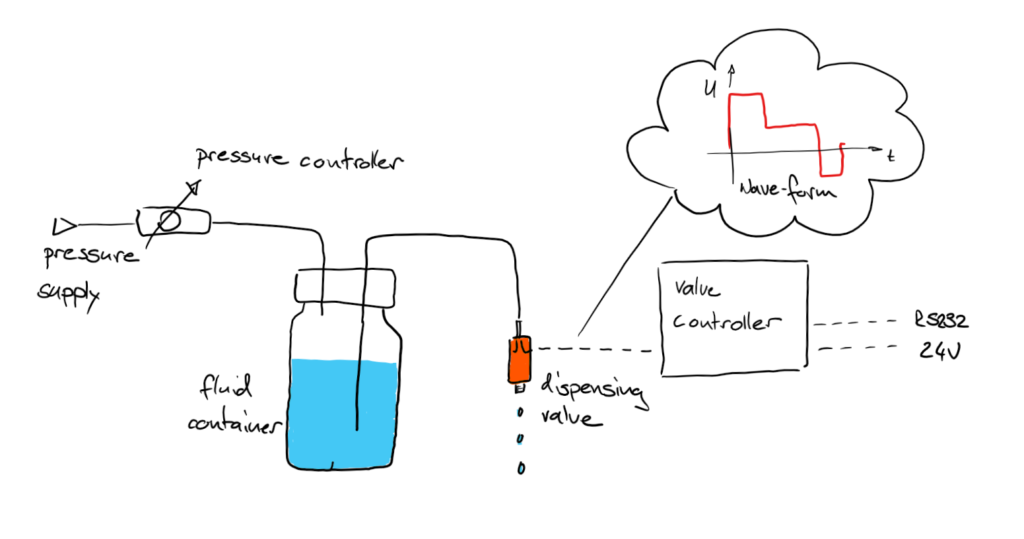

The CFS differential pressure flow sensor was designed for measuring dynamic dosing processes. It is well suited for monitoring peristaltic pumps, syringe pumps and dosing valves. In contrast to the Pulsed Flow Sensor, however, the CFS is not suitable for measuring sub-microlitre drops and does not have the triggered high-resolution measuring modes of the PFS-Controller. Thanks to its good dynamics, however, drops of 20 microliters and more can still be detected and measured. The fast, continuous sampling rate means that even short events such as a pulse or an air bubble cannot be overlooked during measurement. The CFS constantly records the flow rate at 100 Hz, regardless of how high the readout interval is set. This can be from 0.01 to 100 seconds.

Features:


Continuous 100Hz background sampling. You do not lose any Information!

Compact Design

Volume flow measurements up to 100 ml/min

Pulse measurement > 20 μl

For water, oil, and other low viscous media (< 100 mPas)

Insusceptible to bubbles

Fast response

Integrated temperature and pressure sensor

Suitable for Hydrogen-peroxide (H2O2) measurement

Specifications:

Sensor typeDifferential Pressure Flow Sensor
Ordering Nr.CFS-B1/B2
Connectors¼-28 UNF flat bottom
Tubing1/8″ OD
Wetted materialssilicone, stainless steel, PEEK, FPM
Dimensions40x22x18 mm
Weight15 g
Accuracy of volume flow± 2 % full scale
CommunicationRS-232
Sampling rate100 Hz
Readout interval0.01 – 100 s
Media calibrationby viscosity and density definition

CFS Versions

Our sensors come in different versions. Find the one that’s right for you

CFS M8


Sensor typeDifferential Pressure Flow Sensor
Ordering Nr.CFS-B1/B2
Connectors¼-28 UNF flat bottom
Tubing1/8″ OD
Wetted materialssilicone, stainless steel, PEEK, FPM
Dimensions40x22x18 mm
Weight15 g
Accuracy of volume flow± 2 % full scale
CommunicationRS-232
Sampling rate100 Hz
Readout interval0.01 – 100 s
Media calibrationby viscosity and density definition
Specifications FFKM:

Sensor typeDifferential Pressure Flow Sensor
Ordering Nr.CFS-B1/B2
Connectors¼-28 UNF flat bottom
Tubing1/8″ OD
Wetted materialssilicone, stainless steel, PEEK, FPM
Dimensions40x22x18 mm
Weight15 g
Accuracy of volume flow± 2 % full scale
CommunicationRS-232
Sampling rate100 Hz
Readout interval0.01 – 100 s
Media calibrationby viscosity and density definition
Specifications CFS EPDM:

Sensor typeDifferential Pressure Flow Sensor
Ordering Nr.CFS-B1/B2
Connectors¼-28 UNF flat bottom
Tubing1/8″ OD
Wetted materialssilicone, stainless steel, PEEK, FPM
Dimensions40x22x18 mm
Weight15 g
Accuracy of volume flow± 2 % full scale
CommunicationRS-232
Sampling rate100 Hz
Readout interval0.01 – 100 s
Media calibrationby viscosity and density definition

Are you looking for an individual solution? Contact us!
